Full Description

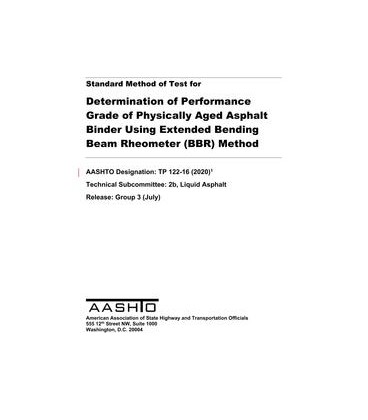

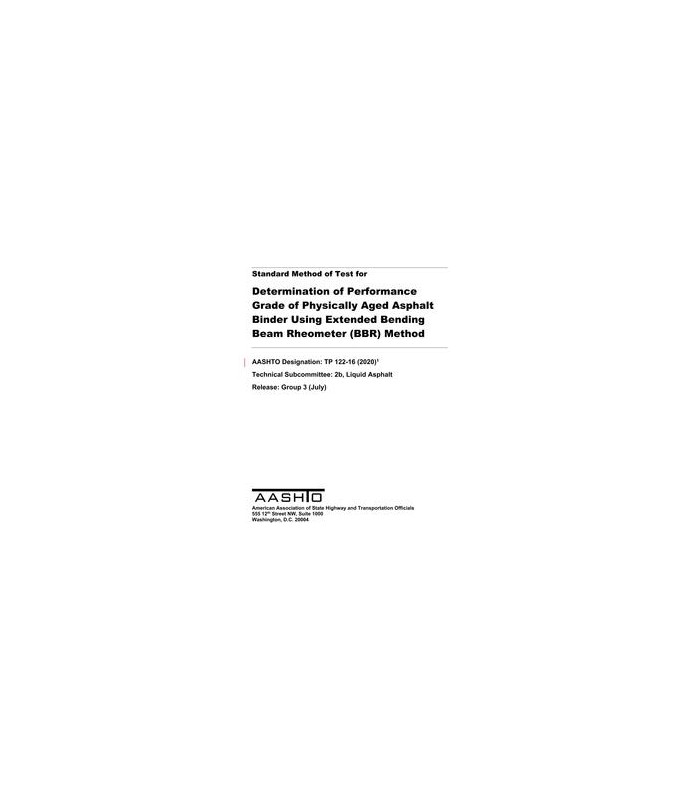

AASHTO TP 122-16 (2020) covers the determination of the low-temperature performance grade (i.e., minimum design pavement temperature) of asphalt binders by means of a bending beam rheometer after going through a physical aging (physical hardening) process. It is applicable to material having a flexural stiffness value from 20 MPa to 1 GPa (creep compliance values in the range of 50 nPa-1 to 1 nPa-1) and can be used with material aged using T 240 (RTFO) or R 28 (PAV) or with recovered asphalt binder. The test apparatus is designed for testing within the temperature range from -36 to 0C.

The bending beam rheometer method used in T 313 conditions samples for 1 h and tests at a temperature 10C warmer than the low-temperature performance grade to determine if the asphalt binder passes the low-temperature requirement. This standard requires testing at two temperatures, to determine by extrapolation a limiting temperature for each of the three conditioning times and two conditioning temperatures.

Low-temperature physical aging of asphalt varies as a function of temperature and time. This standard conditions at 10C and 20C warmer than the low-temperature performance grade for periods of 1 h, 24 h, and 72 h to simulate the effect of extended conditioning at two different cold temperatures.

Test results are not valid for beams of asphalt binder that deflect more than 4 mm or less than 0.08 mm when tested in accordance with this method.

Product Details

Published: 2016 Number of Pages: 9 File Size: 1 file , 1.1 MB Product Code(s): TP122-16-UL, TP122-16-UL, TP122-16-UL
